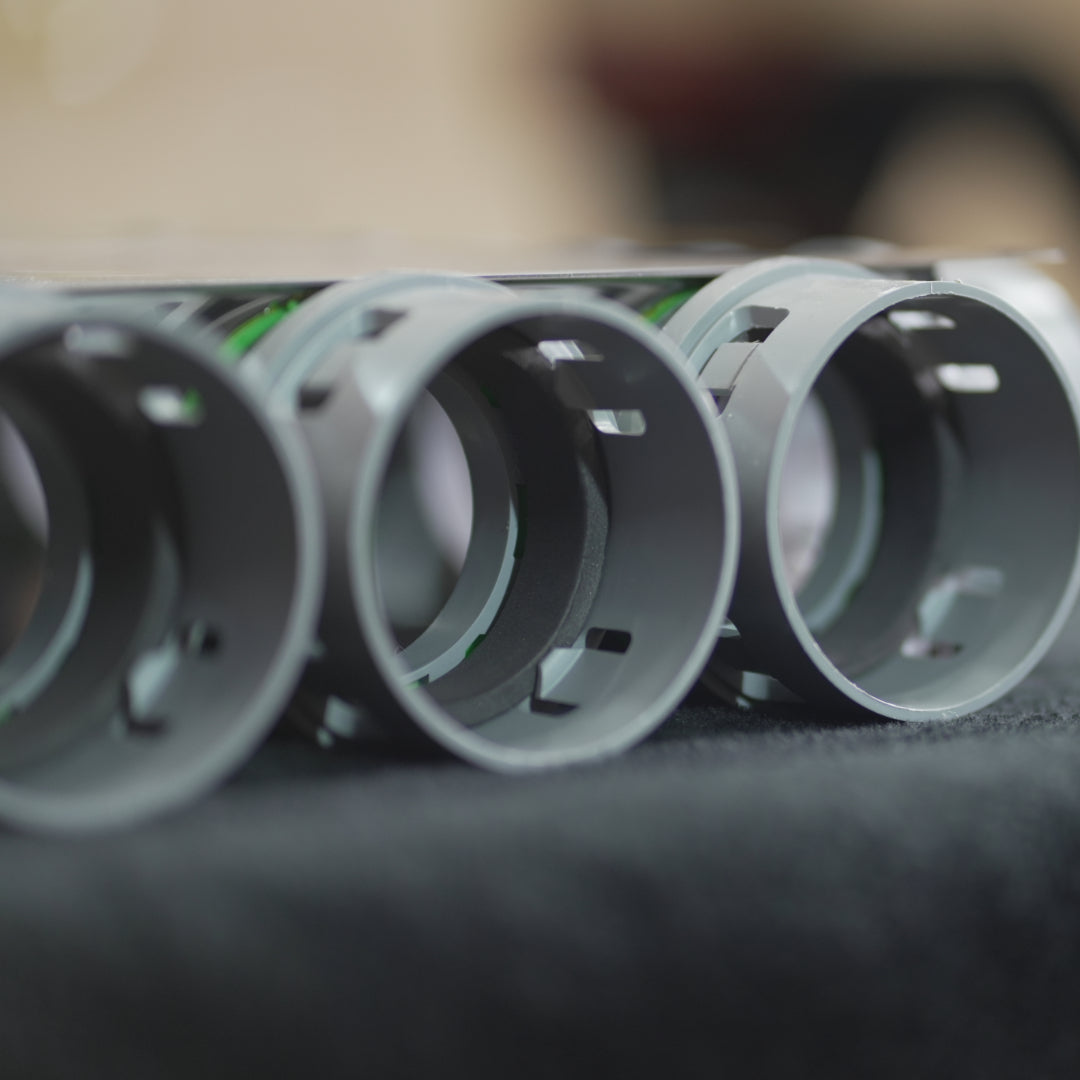

Click and Go - 10 Port Manifold - 75mm

Zero Assembly. Leak-Free Seals. Ultimate Install Speed.

Engineered specifically for high-efficiency Mechanical Ventilation with Heat Recovery (MVHR) radial systems, the Click & Go Stainless Steel Manifold takes the friction out of ductwork installation.

Arriving fully pre-assembled straight out of the box, this unit features an integrated "Click & Go" push-fit connection system for Ten 75mm radial duct runs and a 150mm main spigot connection. With built-in high-performance internal seals on the manifold side, you can connect your semi-rigid pipe directly—no loose O-rings, sealant, or special tools required.

Key Technical Features

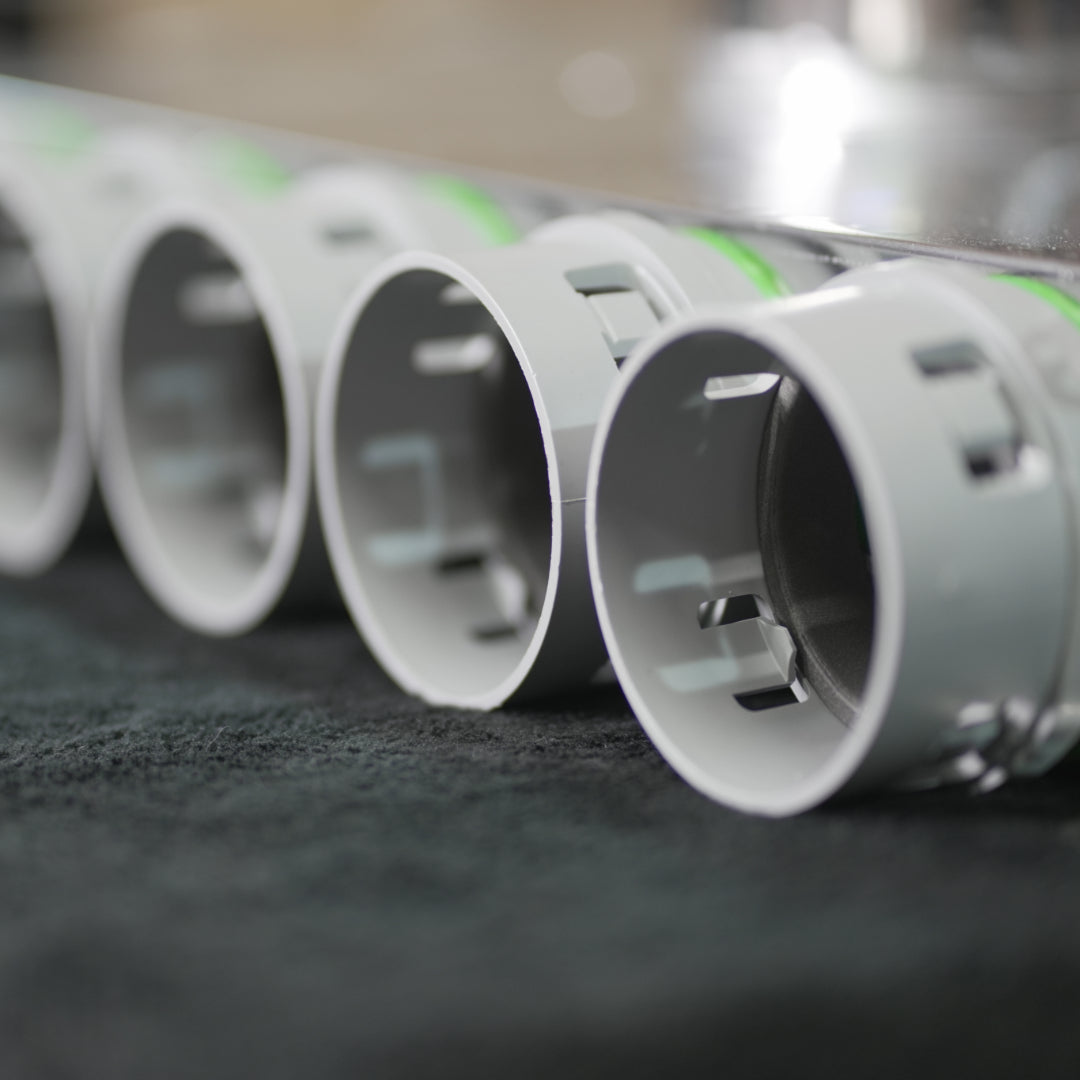

• Integrated "Click & Go" Ports: Outfitted with Ten 75mm radial connections featuring internal sealing rings. The built-in seals compress directly against the ducting exterior to form an airtight, whisper-quiet joint instantly.

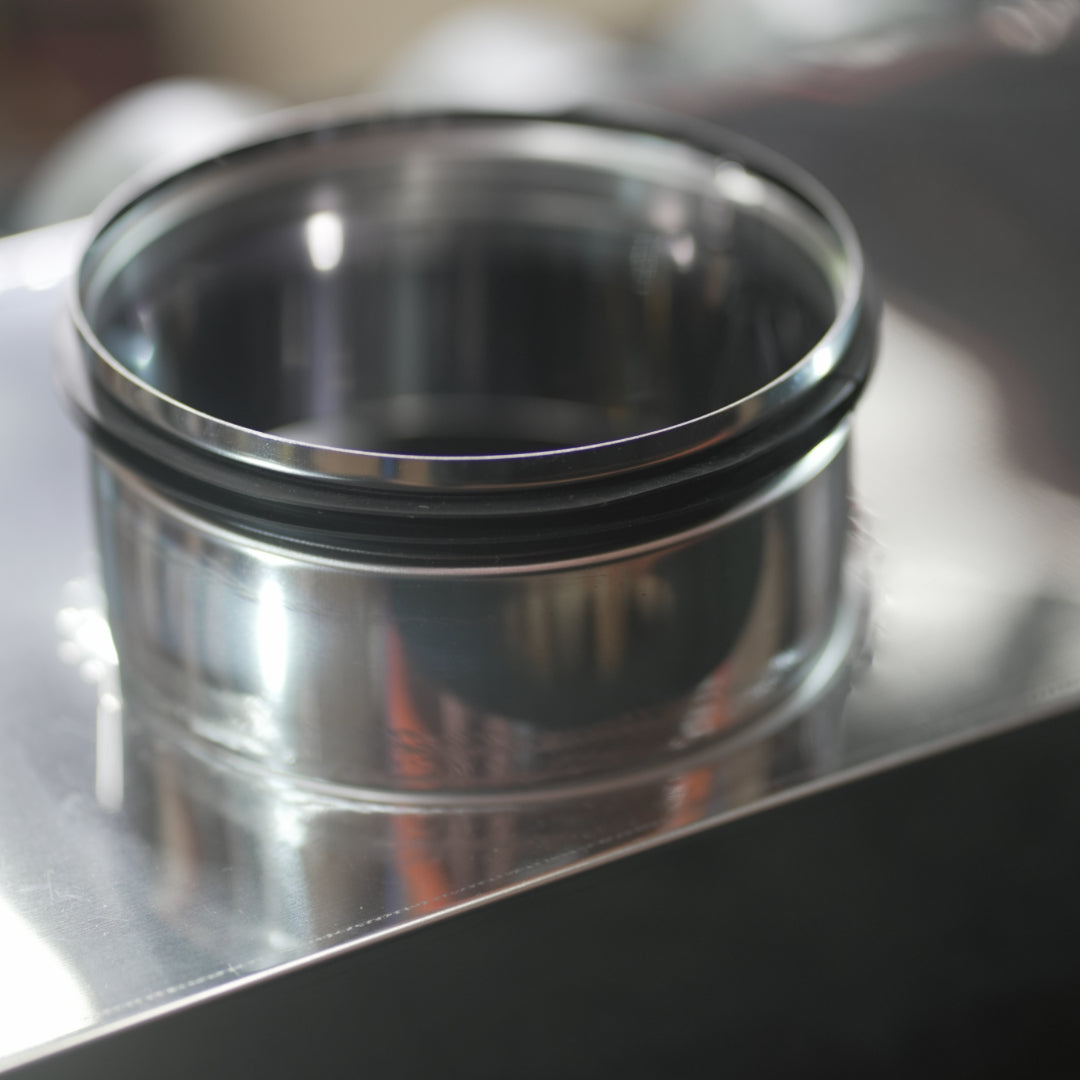

• 150mm Main Connection: Top-entry 150mm main spigot connects smoothly to your primary insulated MVHR distribution pipework.

• Zero-Assembly Design: Ready to mount and pipe up immediately - no on-site box assembly or loose collar fitting needed.

• Heavy-Duty Stainless Steel Construction: Premium stainless steel finish ensures maximum corrosion resistance, structural rigidity, and a professional aesthetic for modern plant rooms or void spaces.

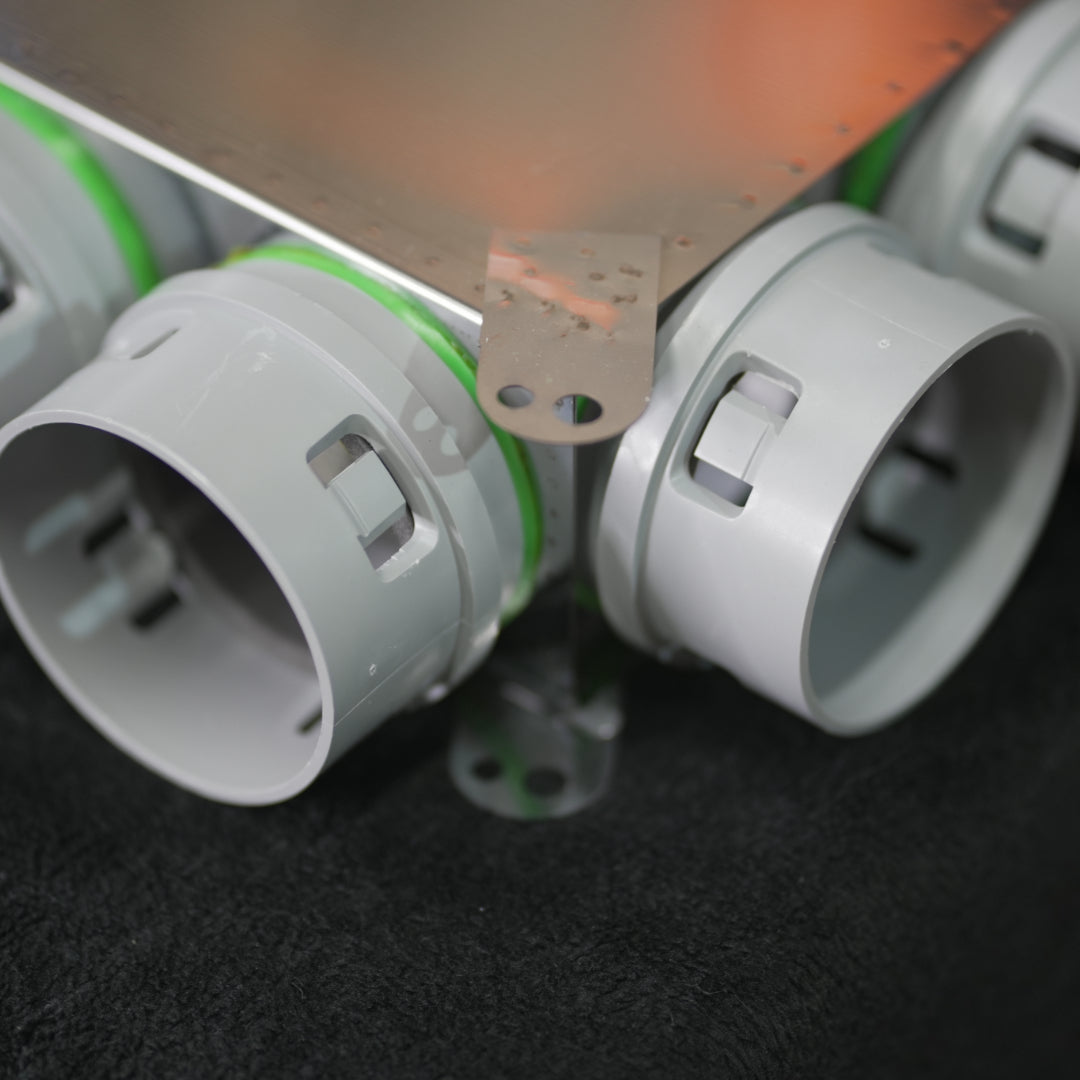

• Multi-Point Mounting System: Includes pre-drilled, integrated fixing tabs on the stainless housing for quick, versatile mounting to walls, ceiling joists, or concrete slabs.

Technical Specifications
