Modern homes are being built more tightly than ever. That's a great thing for energy bills, but it creates a real challenge: where does the fresh air come from? When a building is highly insulated and airtight, natural ventilation through gaps and vents simply doesn't cut it anymore. For architects working on new builds and high-performance retrofits across the UK and Ireland, understanding Mechanical Ventilation with Heat Recovery (MVHR) is no longer optional. It's a fundamental part of delivering a home that's compliant, comfortable, and future-proof.
Why Airtight Homes Create Ventilation Challenges
There's a well-known tension at the heart of modern home design: the better you seal a building against heat loss, the more you risk trapping stale air, excess moisture, and airborne pollutants inside. Passivhaus and near-zero-energy homes are prime examples — their exceptional fabric performance means natural ventilation is almost entirely eliminated.
Without a controlled ventilation strategy, residents quickly notice the effects. Condensation forms on windows and cold surfaces. CO₂ levels rise in sleeping areas. Humidity builds in kitchens and bathrooms, leading to mould growth — a serious health risk and a costly remediation headache for developers. Research into mechanical ventilation in energy-efficient social housing has highlighted these exact issues, confirming that building tightness without an active ventilation system causes measurable declines in indoor air quality.
For architects, this isn't just a design problem, it's a regulatory one. Approved Document F and Approved Document L of the Building Regulations set clear expectations. Trickle vents and intermittent extract fans no longer meet the bar for most new builds. MVHR is increasingly the system of choice, and getting the design right starts at the earliest stages.
👉 Learn more about our bespoke MVHR design service
How MVHR Solves the Problem — and Supports Compliance

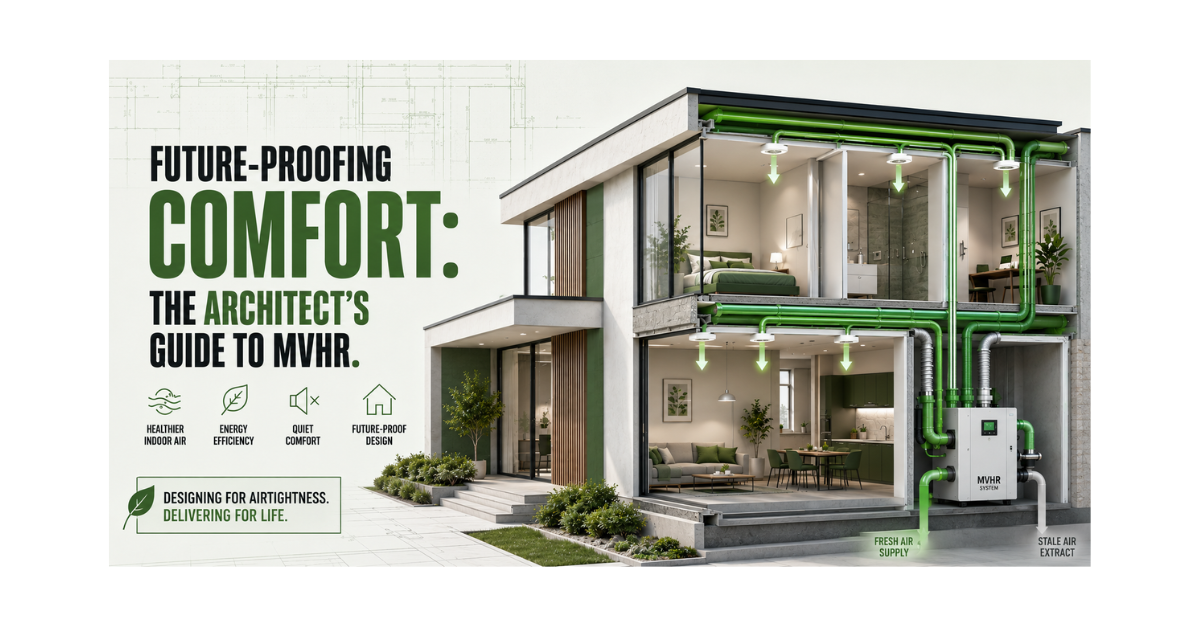

An MVHR system works by continuously extracting stale, moisture-laden air from wet rooms — kitchens, bathrooms, utility rooms — and simultaneously supplying fresh, filtered air to habitable spaces like bedrooms and living rooms. The clever part is a highly efficient heat exchanger at the core of the unit, which transfers warmth from the outgoing air to the incoming supply. Modern systems recover 85–93% of that heat energy, meaning you get constant, balanced ventilation without haemorrhaging the heat you've already paid for.
From a compliance standpoint, MVHR is listed under System 4 in Approved Document F — balanced supply and extract with heat recovery. It supports both Part F (ventilation rates) and Part L (energy conservation) simultaneously, and its performance feeds directly into SAP 10 calculations, improving the Dwelling Emission Rate (DER) and boosting EPC ratings. For architects designing homes to net-zero or Passivhaus standards, MVHR is often the only system that can hit all the compliance targets at once.
For architects, there's also the practical matter of spatial planning. MVHR units require a central plant location — typically in a loft, utility room, or services cupboard — with short, balanced duct runs to each room. Duct routes must be coordinated early to avoid conflicts with structural elements, lighting, and ceiling depths. Getting this right at RIBA Stage 2 or 3 avoids expensive redesigns on site.
👉 Browse our full range of MVHR units
Key Design Considerations for Architects
When specifying MVHR in a new build or deep retrofit, architects should plan around the following:
- Early coordination — Introduce MVHR into the design at Stage 2 at the latest. Late changes to duct routing are costly and often compromise system performance.
- Airtightness target — MVHR performs best in highly airtight buildings (ideally ≤3 m³/hr/m² at 50 Pa, or better). The design team should set and verify an airtightness target before commissioning the ventilation layout.
- Central unit location — Position the unit centrally to minimise duct runs. Avoid locations where noise could disturb occupants, and ensure access for filter maintenance.
- Duct design — Use low-resistance, smooth-bore ducting wherever possible. Avoid unnecessary bends and long horizontal runs. Rigid or semi-rigid duct performs significantly better than flexible corrugated alternatives.
- External terminals — Coordinate supply and extract terminals with facade design and cladding details early. Poorly positioned terminals can cause short-circuiting of supply and extract air.
- Commissioning documentation — Part F requires commissioning records and handover documentation. Ensure this is factored into the project delivery programme.
- Noise performance — Specify units with low specific fan power (SFP) and appropriate acoustic attenuation in duct runs serving bedrooms and living areas.
- SAP/energy assessment integration — Work with SAP assessors early so that MVHR performance parameters are correctly inputted. This maximises the unit's contribution to the DER and overall EPC score.
Key Benefits of MVHR for Modern Homes
- Continuous fresh, filtered air — Allergens, pollutants, and excess CO₂ are removed around the clock, not just when extract fans are switched on.
- Condensation and mould prevention — Balanced airflow and controlled humidity dramatically reduce the risk of surface condensation and mould growth.
- Energy-efficient performance — Heat recovery of 85–93% means ventilation no longer equals significant heat loss.
- Quiet, unobtrusive operation — Quality systems run quietly in background mode, with boost settings for kitchens and bathrooms.
- Regulatory compliance — Satisfies Part F (System 4), supports Part L energy targets, and feeds into SAP 10 calculations.
- Improved EPC ratings — MVHR's energy contribution is recognised in SAP assessments, helping achieve higher Energy Performance Certificate scores.
- Long-term resident comfort — A home with consistent air quality and temperature is a demonstrably healthier, more comfortable place to live.
MVHR Systems Available from Heat Recovery Direct
We stock a carefully selected range of high-performance MVHR units from leading manufacturers, including complete kits with all the ducting, valves, and accessories needed for a clean, compliant installation:
- Zehnder ComfoAir Q Series (Q350 & Q450) — Premium whole-house MVHR units with up to 93% heat recovery efficiency, ultra-quiet operation, and smart app control. Ideal for Passivhaus and high-specification new builds.
- Vent-Axia Sentinel Kinetic FH Series — Compact, highly efficient units with EC fan motors, up to 89% heat recovery, and MVHR kit options for 3–5 bedroom homes. Available in 10-point and 12-point configurations.
- Ubbink Ubiflux Vigor W450 & W600 — High-capacity units suited to larger homes and more demanding airflow requirements, with low SFP ratings and robust build quality.
- Brink Flair 600 — A professional-grade unit designed for larger dwellings or light commercial applications, with excellent filtration and commissioning flexibility.
- Controllers & Sensors — A range of compatible wall controllers, humidity sensors, CO₂ sensors, and smart home integration options to complement any MVHR installation.
Why Architects Trust Heat Recovery Direct
Heat Recovery Direct is based in County Fermanagh and serves architects, contractors, self-builders, and retrofit specialists across the UK and Ireland. With over 15 years of industry experience, we're certified suppliers and installers of high-performance MVHR systems, airtightness membranes, and airtight tapes.
We work with design teams from early-stage specification right through to commissioning and Part F documentation. Our team can provide custom MVHR design services, system selection advice, duct layout coordination, and full commissioning with room-by-room airflow verification. We understand that architects need a supplier who speaks the language of RIBA stages, building regulations, and SAP assessments — not just product features.
Ready to Specify MVHR on Your Next Project?
Integrating MVHR into a modern home design isn't complicated when you plan for it from the start. The right system, specified correctly and commissioned properly, delivers healthier air quality, lower energy bills, and full regulatory compliance — all while supporting your clients' long-term comfort and satisfaction.
Whether you're working on a single new build, a multi-unit development, or a deep retrofit, our team is here to support you from specification to handover.
👉 Shop MVHR Systems | Get a Custom MVHR Design | Contact Our Team for Expert Advice
Frequently Asked Questions
At what stage should MVHR be introduced into an architectural design?
Ideally at RIBA Stage 2 or 3, when floor plans and ceiling heights are being confirmed. Early integration allows duct routes to be coordinated with structural and MEP elements, avoids costly site changes, and ensures the system is correctly modelled in SAP calculations. Introducing MVHR late in the design process frequently results in compromised duct runs, higher installation costs, and underperforming systems.
Does MVHR satisfy both Part F and Part L of the Building Regulations?
Yes. MVHR is classified as System 4 under Approved Document F, which covers whole-dwelling balanced supply and extract ventilation. It simultaneously supports Approved Document L by recovering heat from exhaust air — reducing the space heating demand and improving the Dwelling Emission Rate. Its performance is captured within SAP 10 assessments, making it one of the most regulation-efficient ventilation strategies available for new builds.
How much space does an MVHR unit require?
Most whole-house MVHR units are relatively compact — roughly the size of a large suitcase — and can be installed in a loft, utility room, or dedicated services cupboard. The critical factor is positioning: the unit should be placed centrally within the floor plan to keep duct runs balanced and short. You'll also need to allow clearance for filter access and maintenance, and coordinate the unit's position with the routing of external supply and extract terminals.
